Ceiling Mounted ERV Energy Recovery Ventilation System With Bottom Maintenance And Smart APP Control
Product Features
Airflow: 150 m³/h
Model: TFKC-015 (A2-1A2)
- Fresh air + Energy recovery, integrated into an energy recovery ventilation system
- Airflow: 150 m³/h

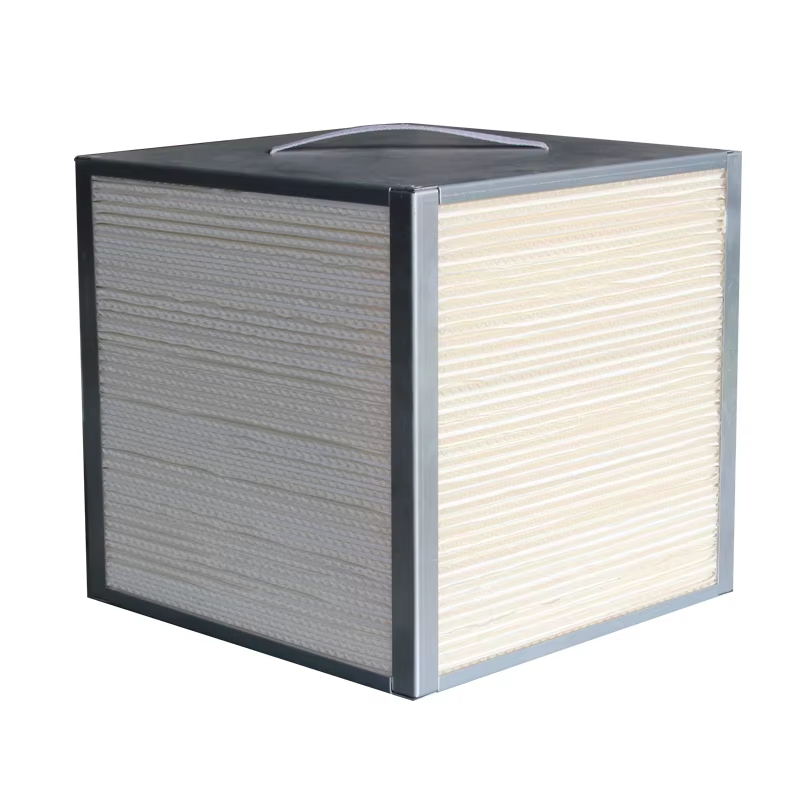

- Enthalpy exchange core
- Filter: G4 primary filter + H12 filter (customizable)

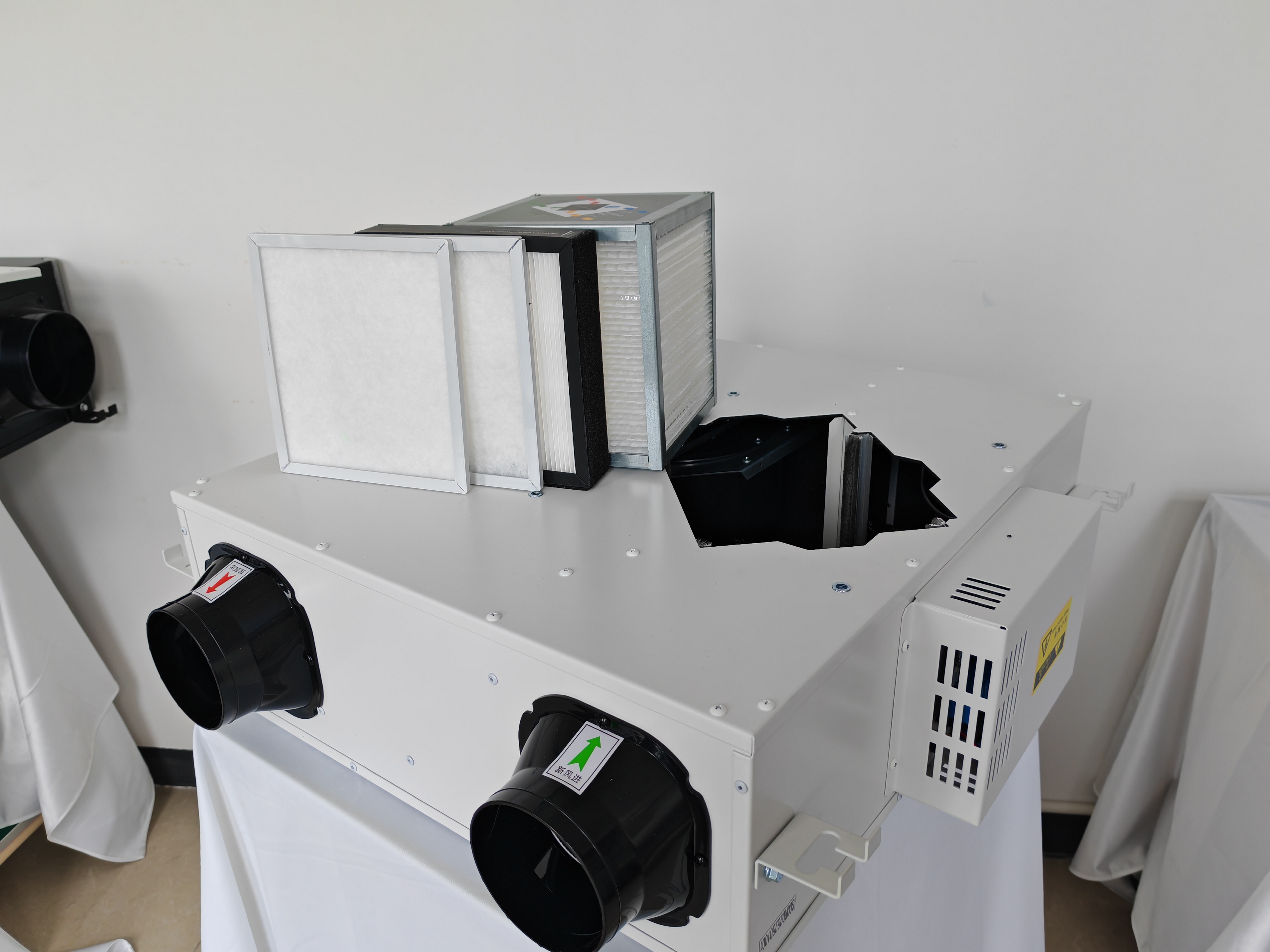

- Buckle-type bottom maintenance design for easy filter replacement
- Customizable according to your requirements
Product Advantages
· High-Efficiency Enthalpy Heat Recovery
Designed for efficient energy recovery ventilation, it delivers greater energy savings and a more comfortable indoor climate. The effective air exchange rate is above 75%. Using advanced polymer membrane material, the core provides high total heat recovery efficiency for enhanced energy recovery ventilation performance. It also features long-term antibacterial and mildew-resistant properties, is washable, and offers a service life of up to 5–10 years.
• Energy Saving Principle
The energy recovery ventilation process follows the heat recovery calculating equation:
SA temp. = (RA temp. − OA temp.) × temp. recovery efficiency + OA temp.
Example:
14.8℃ = (20℃ − 0℃) × 74% + 0℃
Heat recovery calculating equation:
SA temp. = (RA temp. − OA temp.) × temp. recovery efficiency + OA temp.
Example:
27.8℃ = (33℃ − 26℃) × 74% + 26℃
Product Description

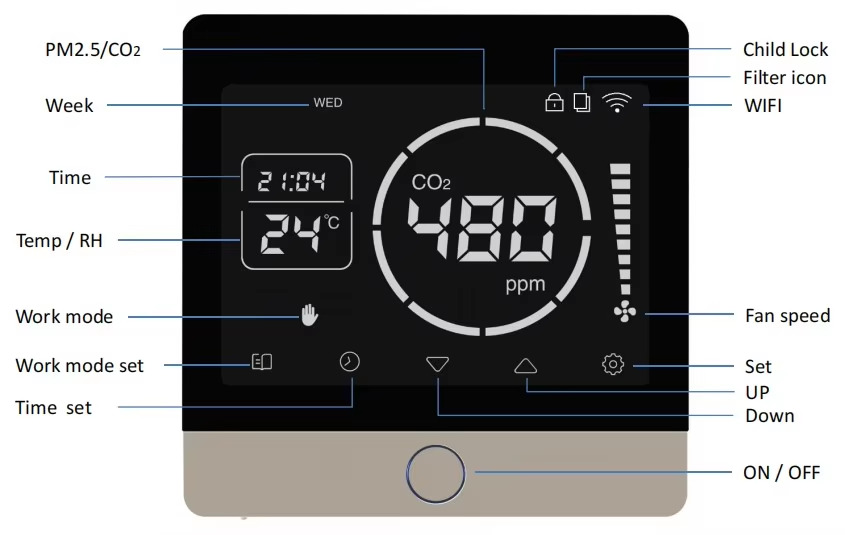

Features (Intelligent Controller + Tuya App)
- 3.7-inch display screen with PM2.5, CO₂, temperature, humidity, and other data shown for real-time monitoring of indoor air quality in the energy recovery ventilation system.
- Equipped with temperature and humidity sensor ICs for accurate environmental detection.
- Time programming function allows users to schedule operating periods, helping achieve energy savings and personalized control requirements.
- APP remote control with real-time monitoring data for more convenient operation.
- Multiple languages available.

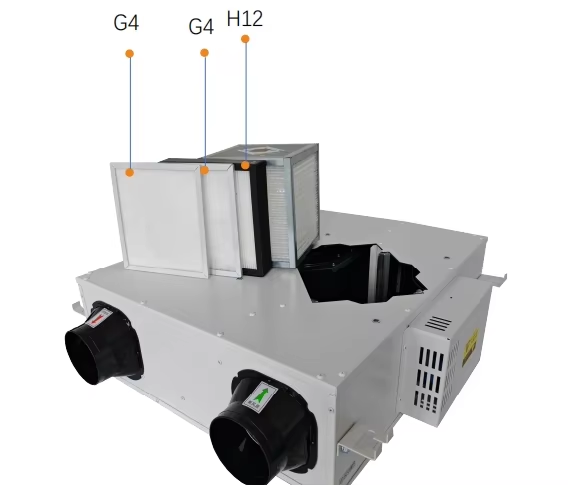

Structures
G4*2 + H12 (Customizable)
A: Primary Purification (G4)
The primary filter is suitable for the primary filtration of energy recovery ventilation systems and is mainly used for filtering dust particles larger than 0.5 μm. (Default white G4 primary filter. If you require the paper carbon filter shown in the picture above, please contact customer service.)
B: High-Efficiency Purification (H12)
Effectively purifies PM2.5 particulate matter. For 0.1 μm and 0.3 μm particles, the purification efficiency reaches 99.998%. It traps 99.9% of bacteria and viruses and causes them to die from dehydration within 72 hours, helping maintain clean air throughout the energy recovery ventilation process.
Product Details
| Technical parameter | |
| Model | TFKC-015(A2-1A2) |
| Airflow（m³/h） | 150 |
| Rated E.S.P（Pa） | 80 |
| Temp. Eff. (%) | 75-80 |
| Noise d(BA) | 32 |
| Power input (W) （Fresh air only） |
90 |
| Rated voltage/frequency | 110~240/50~60 (V/Hz) |
| Energy recovery | Enthalpy exchange core，heat recovery efficiency is up to 75% |
| Purification efficiency | 99% |
| Controller | TFT Liquid crystal display / Tuya APP （Optional) |
| Motor | AC motor |
| Purification | Primary filter (G4*2) + H12 Hepa filter |
| Operating ambient temperature（℃） | -15~40℃ |
| Fixation | Celling-mounted/Wall mounted |
| Connect size(mm) | φ100 |

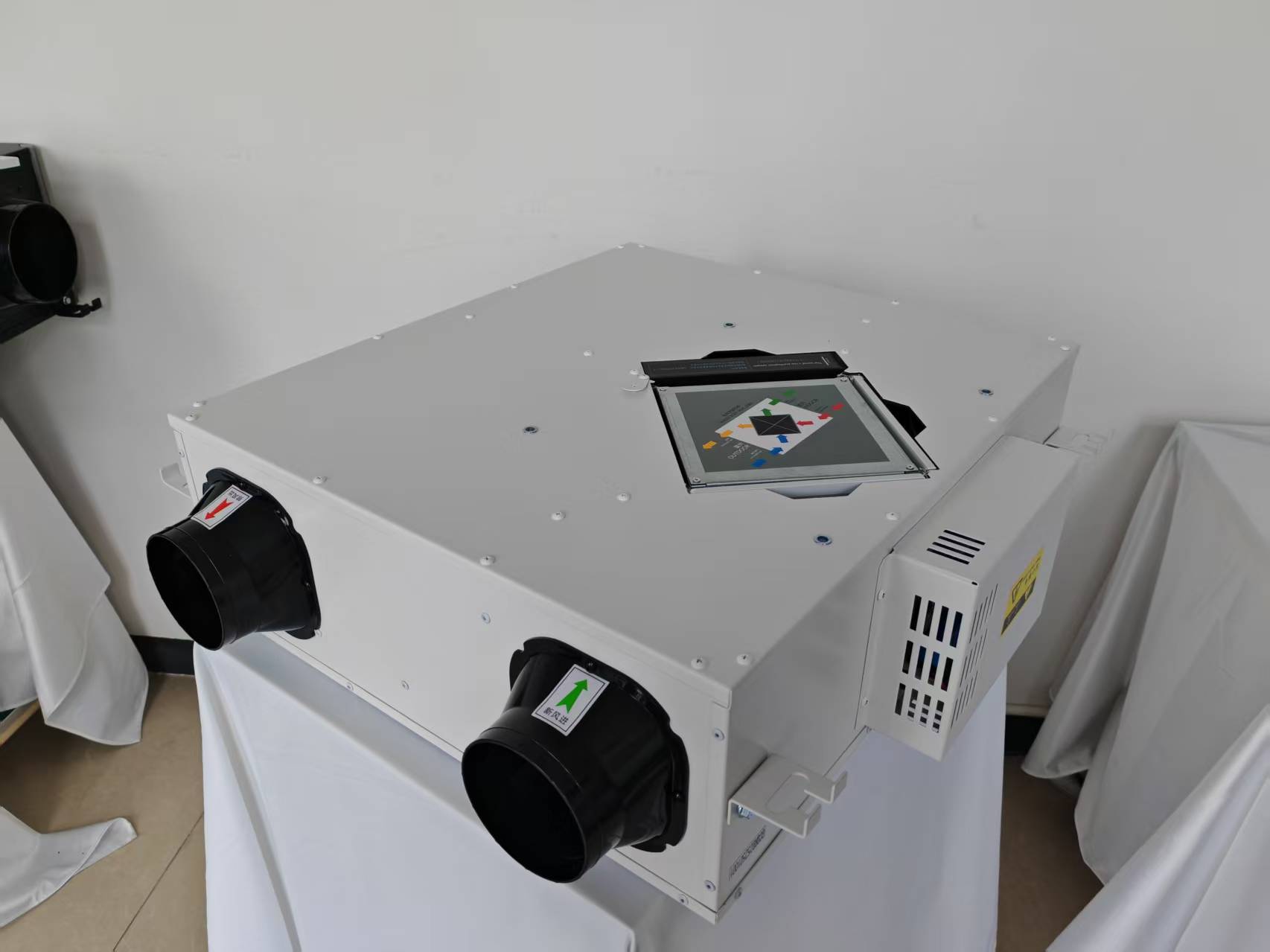

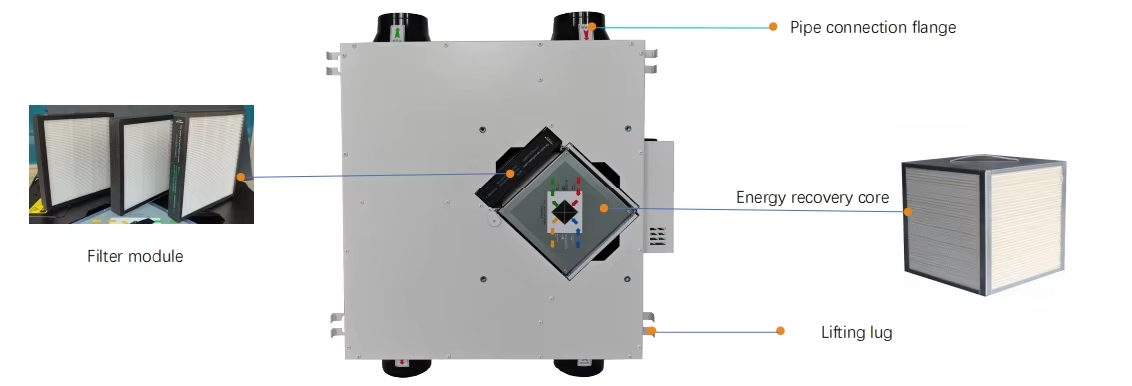

Equipment display
Application Scenarios
Private Residence
Hotel
Basement
Apartment
Why Choose Us

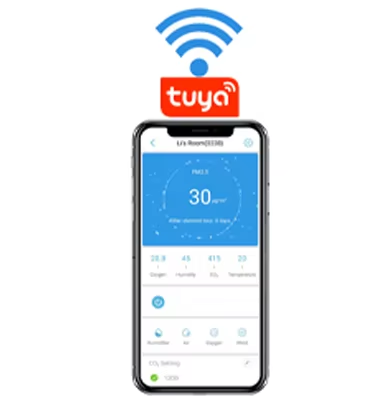

Tuya APP can be used for remote control of the energy recovery ventilation system.
The APP is available for iOS and Android phones with the following functions:
- Monitoring indoor air quality
Monitor local weather, temperature, humidity, CO₂ concentration, and VOC levels at your fingertips for healthier living and better energy recovery ventilation management. - Variable setting
Timed switch, speed settings, bypass, timer, filter alarm, and temperature settings. - Optional language
Multiple languages available, including English, French, Italian, Spanish, and more to meet your requirements. - Group control
One APP can control multiple units. - Optional PC centralized control
Up to 128 ERV units can be controlled by one data acquisition unit. Multiple data collectors can be connected in parallel.
