wall mounted ventilation erv energy ventilation system with heat recovery air ventilators
Product Introduction
This vertical fresh air system is uniquely designed with a two-way flow structure to ensure smoother indoor air circulation and more efficient energy recovery ventilation performance. The hexagonal total heat exchange core can effectively exchange temperature and humidity to improve indoor comfort within the energy recovery ventilation process. The system is also equipped with a HEPA purification function that filters and purifies indoor air, removing various harmful substances and allowing you to breathe more healthily.
In addition, the four-speed adjustment function allows you to adjust the air volume according to your needs, bringing a more comfortable indoor environment supported by stable energy recovery ventilation operation.
Product Features
Airflow: 250~500 m³/h
Model: TFPW C1 Series
Characteristics:
• Pre-heating outdoor inlet air to protect the enthalpy exchange core from freezing
• Energy recovery ventilation (ERV)
• Purification efficiency up to 99% for stable energy recovery ventilation performance
• Heat recovery efficiency up to 93%
• Smart defrost mode
• RS485 communication interface
• Bypass function
• Operating ambient temperature: -25℃ ~ 43℃
• IFD sterilization filter (optional)
Application Scenarios
Villa
Residential building
Hotel/Apartment
Commercial Building
Product Parameter
| Model | Rated airflow(m³/h) | Rated E.S.P(Pa) | Temp.Eff(%) | Noise(dB(A)) | Vlot.(V/Hz) | Power (input)(W) | N.W(Kg) | Size(mm) | Connect Size(mm) | |
| TFPW-025(C1-1D2) | 250 | 100(200) | 80-93 | 34 | 210-240/50 | 90+(300) W | 50 | 850*400*750 | φ150 | |
| TFPW-035(C1-1D2) | 350 | 100(200) | 75-90 | 36 | 210-240/50 | 140+(300) W | 55 | 850*400*750 | φ150 | |
| TFPW-045(C1-1D2) | 450 | 100(200) | 73-88 | 42 | 210-240/50 | 200+(300) W | 65 | 850*400*750 | Φ200 | |

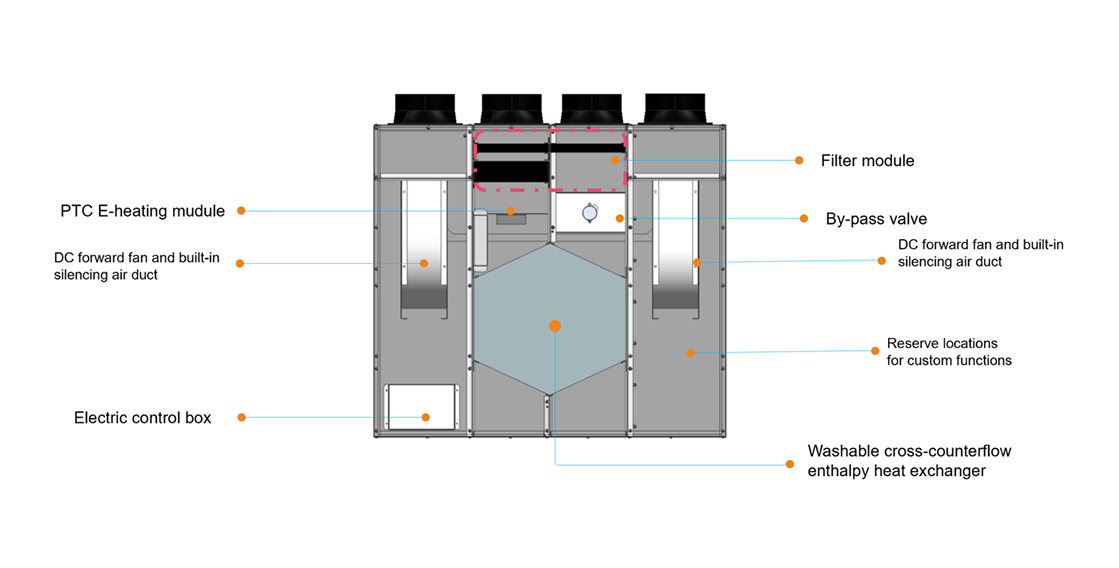

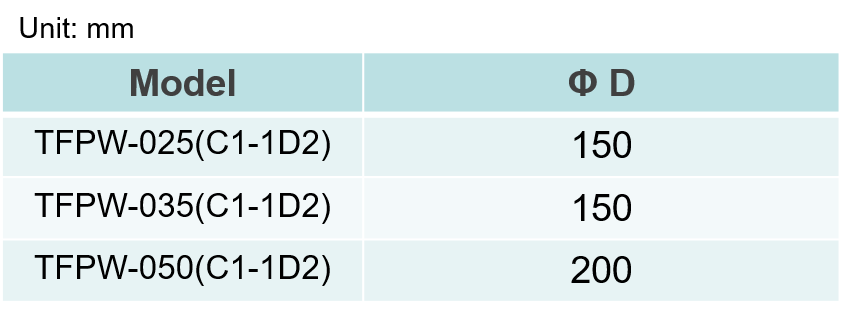

Structures And Size
Product Description
Product Details
This Vertical ERV is suitable for house units with insufficient headspace.
• The system uses energy recovery ventilation technology.
• It integrates balanced ventilation and pre-heating of fresh air in winter through efficient energy recovery ventilation operation.
• It provides healthy and comfortable fresh air while achieving maximum energy savings; heat recovery efficiency is up to 90%.
• Reserve positions for custom function modules.
• Bypass function is standard.
• PTC heating ensures operation in low-temperature environments in winter.

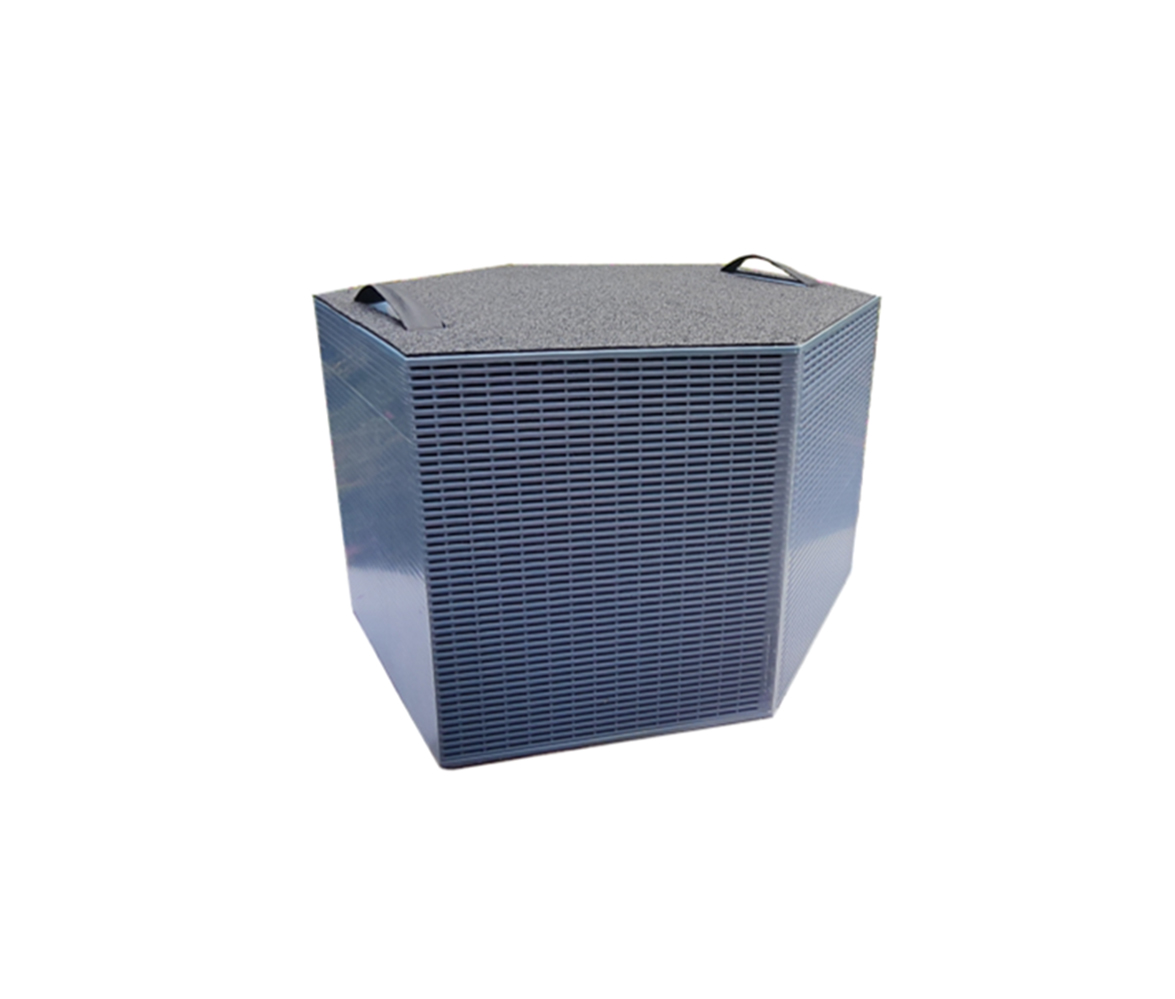

Washable cross-counterflow enthalpy heat exchanger
1. High efficiency cross-counterflow enthalpy heat exchanger
2. Easy to maintain
3. 5~10 years life
4. Up to 93% heat exchange efficiency
Main Features
Heat recovery efficiency up to 85%, enthalpy efficiency up to 76%, and an effective air exchange rate above 98%. Selective molecular osmosis technology enhances overall energy recovery ventilation performance. The unit is flame-retardant, antibacterial, and mildew-resistant.

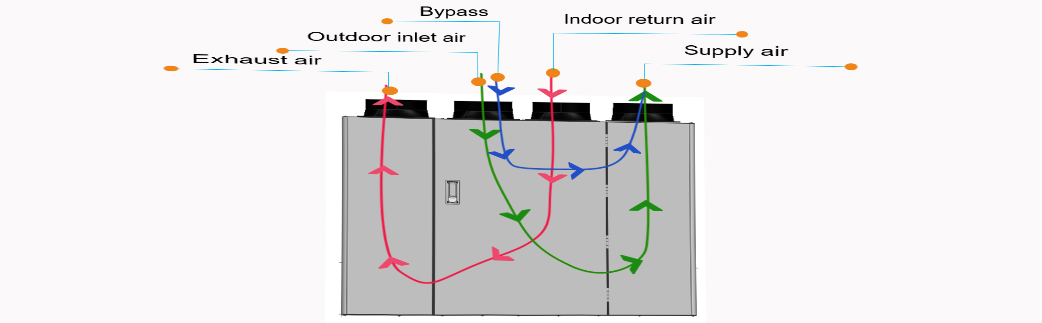

Working Principle
The flat plates and corrugated plates form channels for supply and exhaust air streams. Energy recovery ventilation is achieved when the two air streams pass through the exchanger in a crossflow pattern with a temperature difference, allowing efficient heat recovery and energy transfer.
Why Choose Us
Intelligent Control: Tuya APP + Intelligent Controller
The intelligent controller offers a range of functions tailored to diverse energy recovery ventilation system requirements.
A temperature display allows constant monitoring of indoor and outdoor temperatures.
The power auto-restart function ensures the energy recovery ventilation system recovers automatically after power outages.
CO₂ concentration control maintains optimal air quality, and the humidity sensor manages indoor humidity levels.
RS485 connectors enable centralized control via BMS. External control and on/error signal output allow administrators to easily monitor and regulate the energy recovery ventilation system.
A filter alarm system alerts users to clean the filter in due time.
