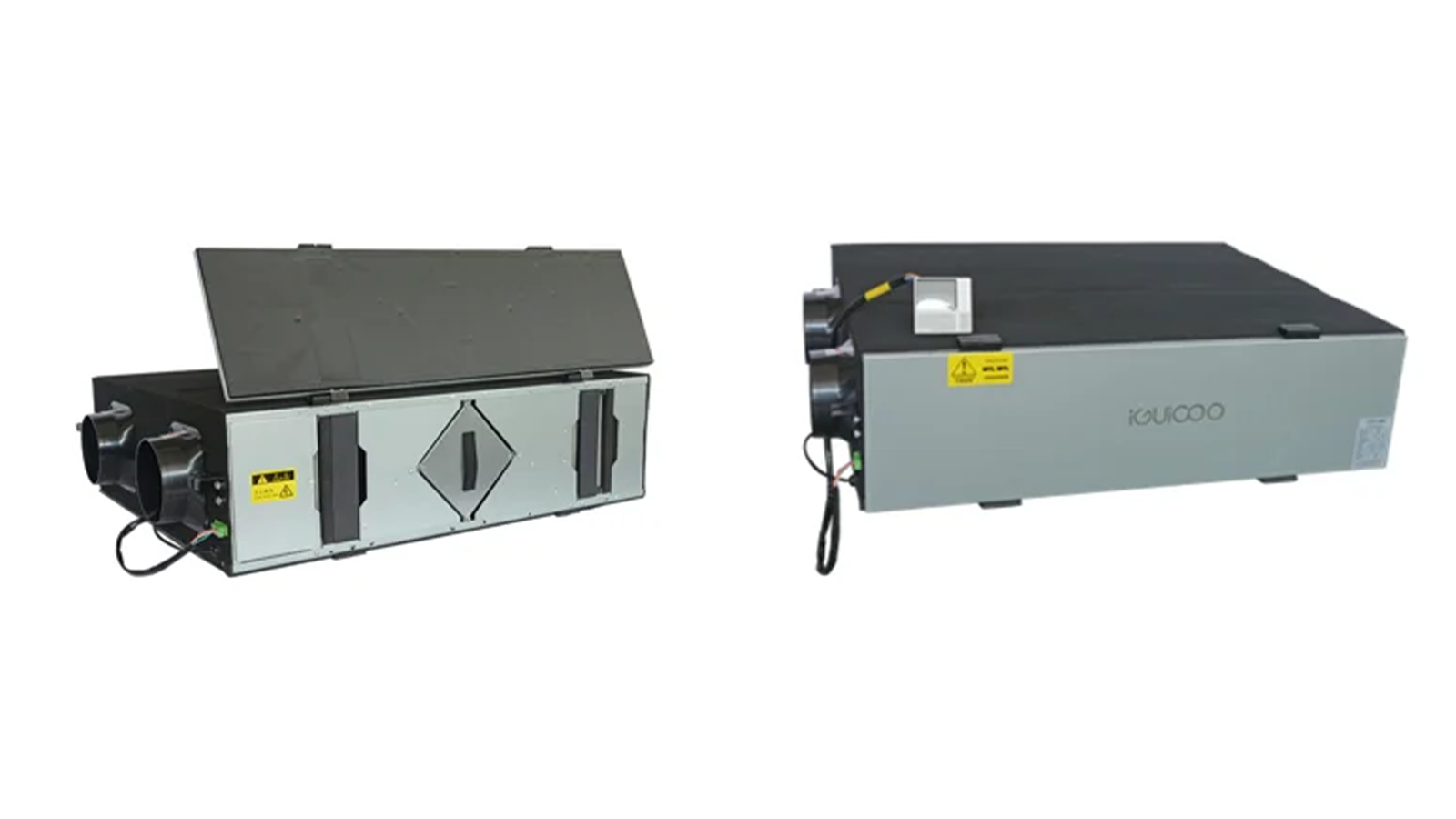

Ceiling Mounted Home Air Ventilation Recuperation Energy Recovery Ventilation with Heat Recovery with intelligent Controller
Product Features
Airflow: 500m³/h
Model:TFPC A1 series
Product Introduction
The electric auxiliary heating fresh air ventilation system utilizes the latest PTC electric auxiliary heating technology, which enables the energy recovery ventilation unit to quickly heat the air at the inlet after being powered on, thereby rapidly increasing the inlet air temperature.
At the same time, the energy recovery ventilation system features an internal circulation function, which can circulate and purify indoor air, helping to improve overall air quality.

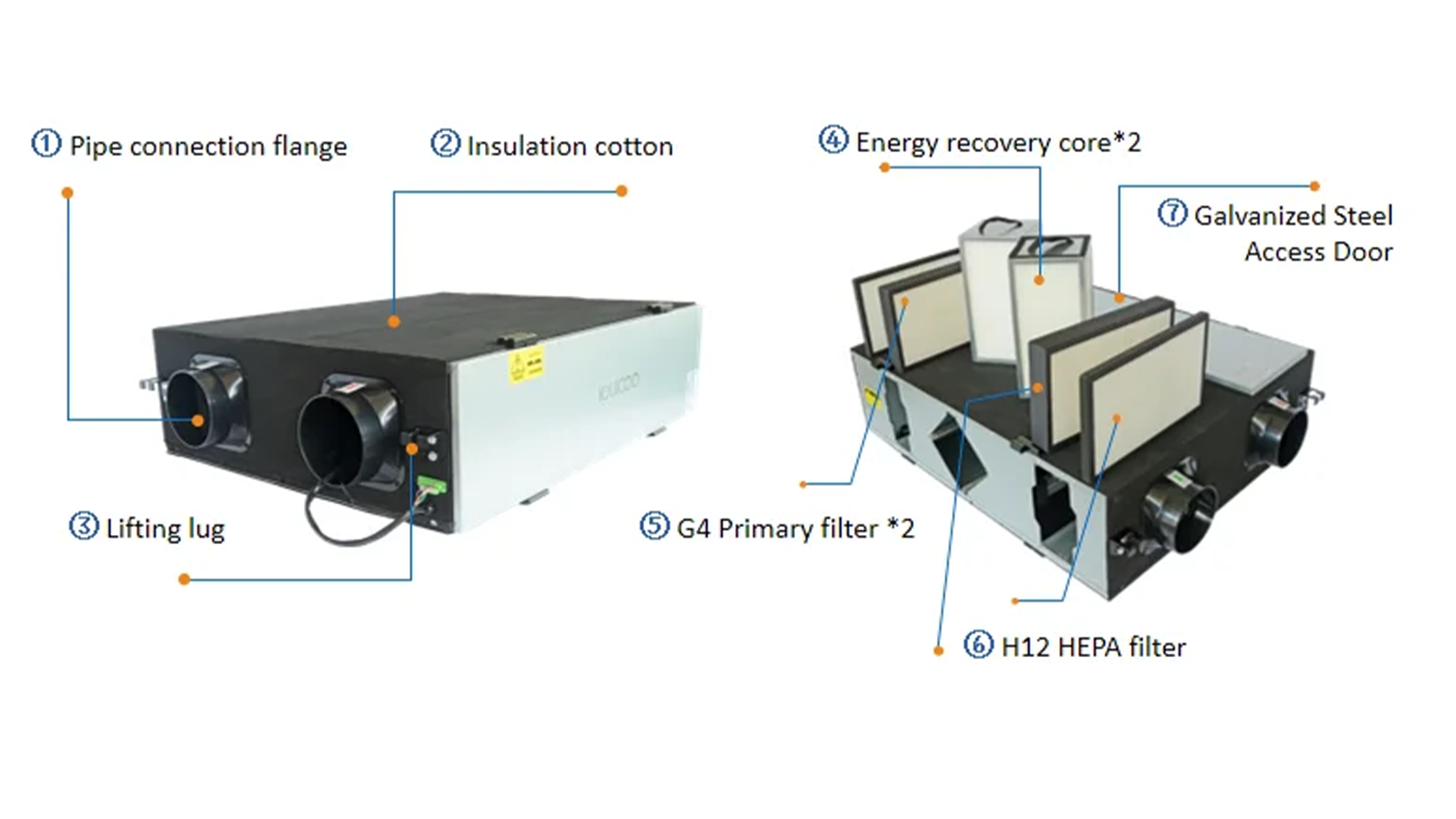

The electric auxiliary heating fresh air ventilation system is equipped with 2 pcs primary filters and 1 pcs H12 filter. If your project has special requirements, we can also discuss customizing other filter materials to meet your needs.
With advanced energy recovery ventilation technology, the system provides a healthier and more comfortable indoor environment while maintaining efficient operation.
Product Description

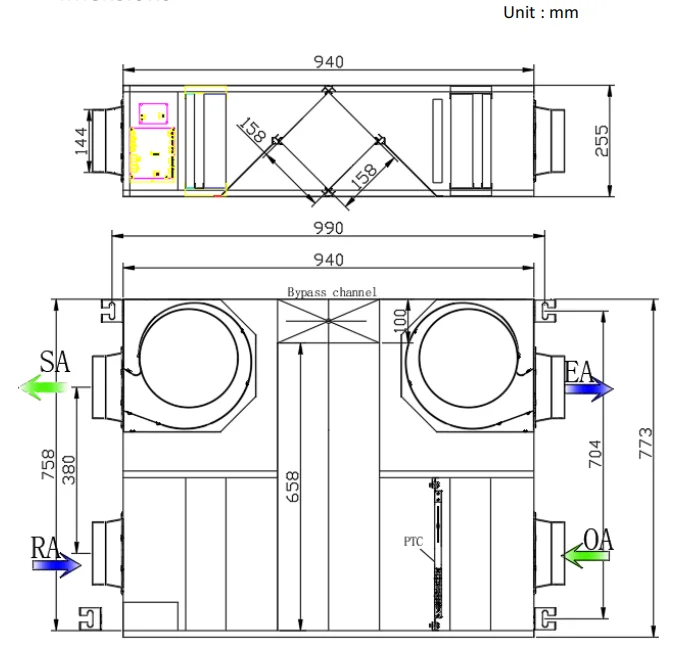

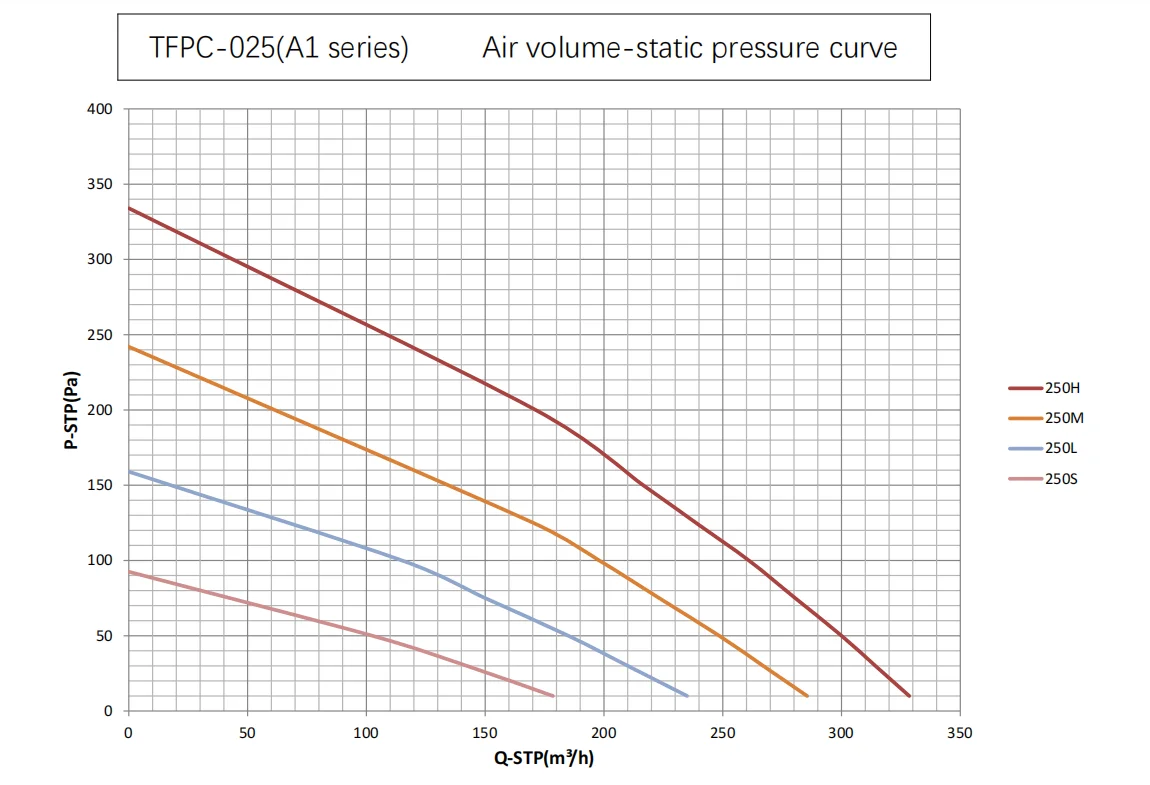

| Model | Rated airflow (m³/h) | Rated E.S.P (Pa) | Temp. Eff (%) | Noise (d(BA)) | Volt (V/Hz) | Power input (W) | N.W. (KG) | Size (mm) | |
| TFPC-025 (A1-1D2) | 250 | 120 | 75-85 | 34 | 210~240/50 | 80 | 38 | 940*773*255 | |
| TFPC-035 (A1-1D2) | 350 | 120 | 75-85 | 36 | 210~240/50 | 80 | 38 | 940*773*255 |
Functional Details Description
Bypass function
Energy saving at night: When the outdoor temperature is suitable, the fresh air is directly supplied to the room through the bypass passage, reducing airflow resistance and allowing the energy recovery ventilation system to avoid heat exchange between the fresh air and return air.
When the outdoor temperature is too high or too low, the bypass is closed, and the fresh air and exhaust air undergo heat exchange to achieve energy recovery.

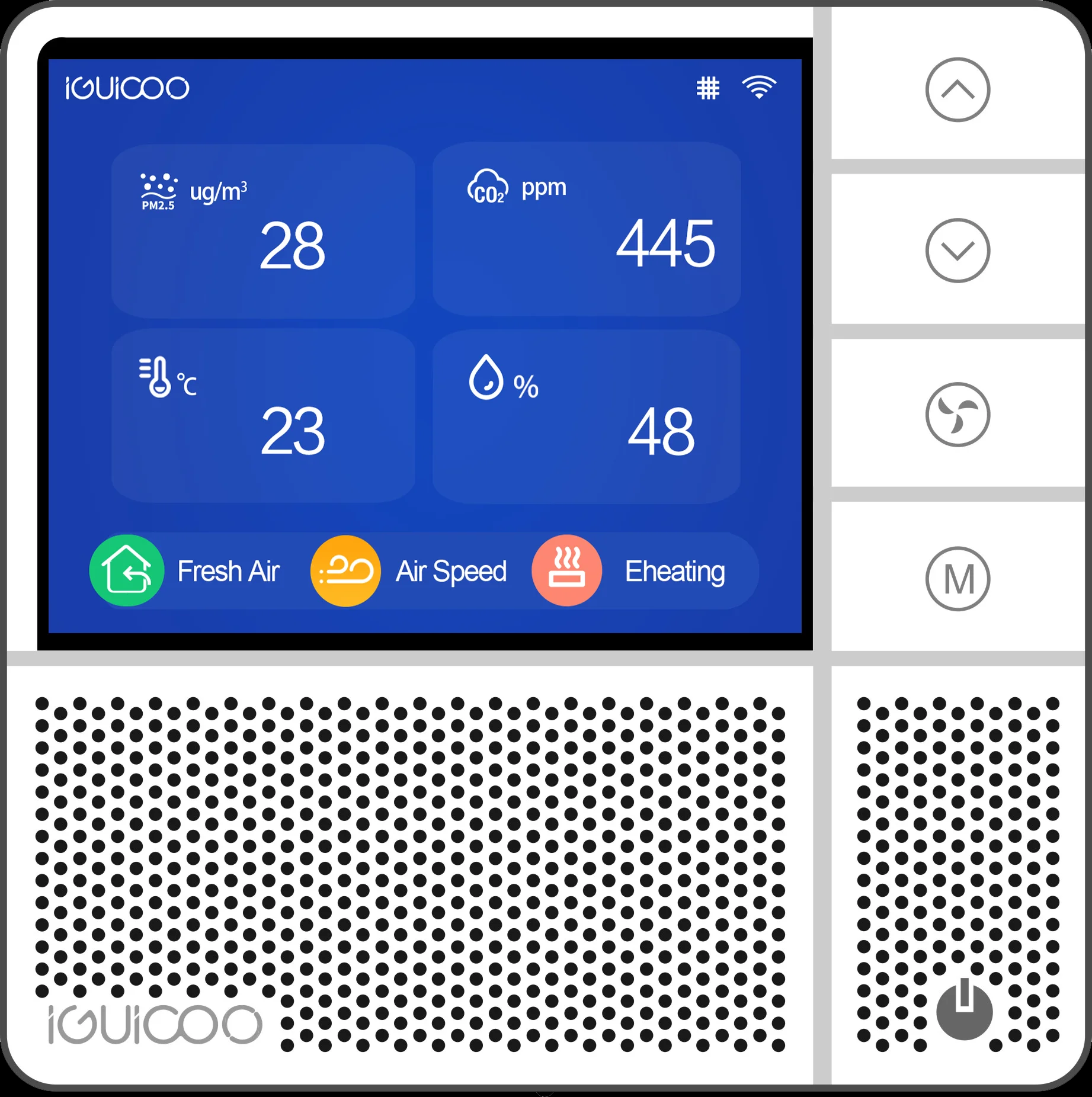

Through intelligent energy recovery ventilation control, the system automatically switches between bypass and heat recovery modes to maximize indoor comfort and energy efficiency.
- Aluminum foil heat recovery efficiency is up to 80%.
- Flame retardant.
- Long-term antibacterial and mildew prevention performance.
- Dehumidification.

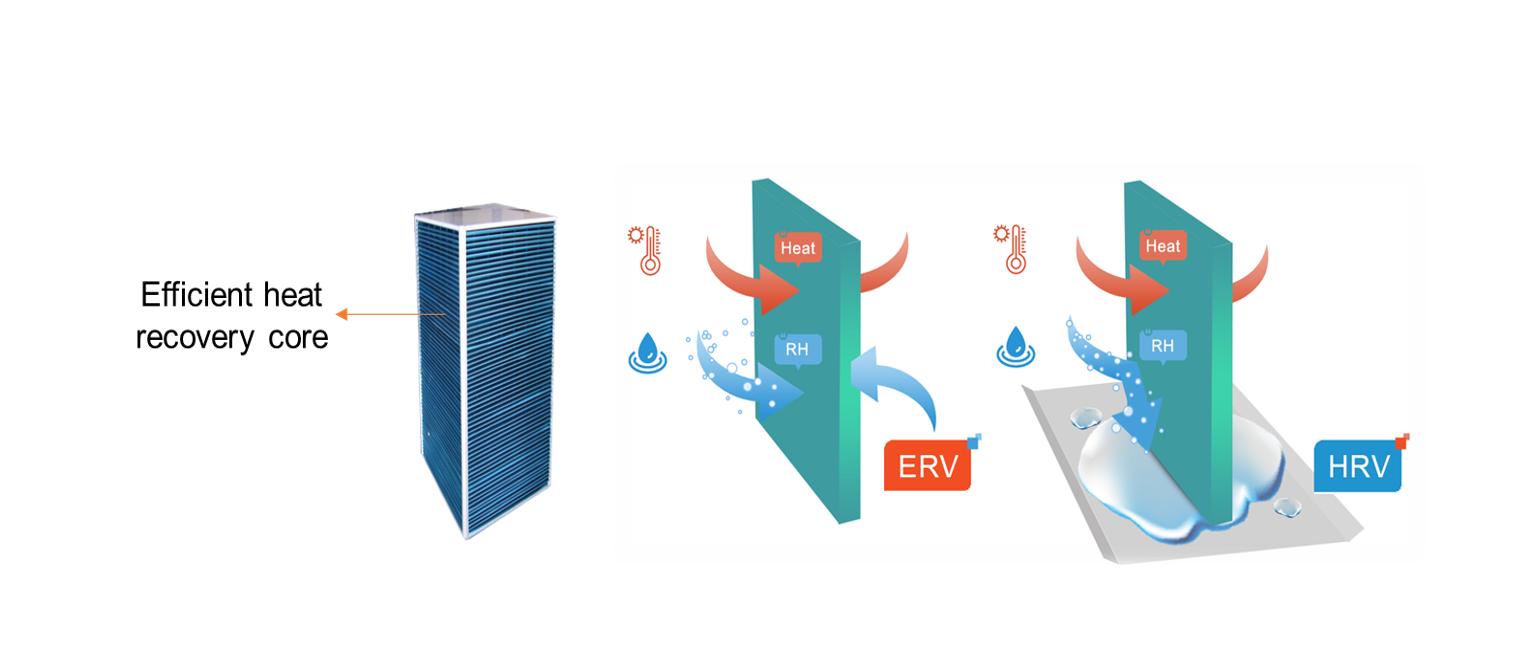

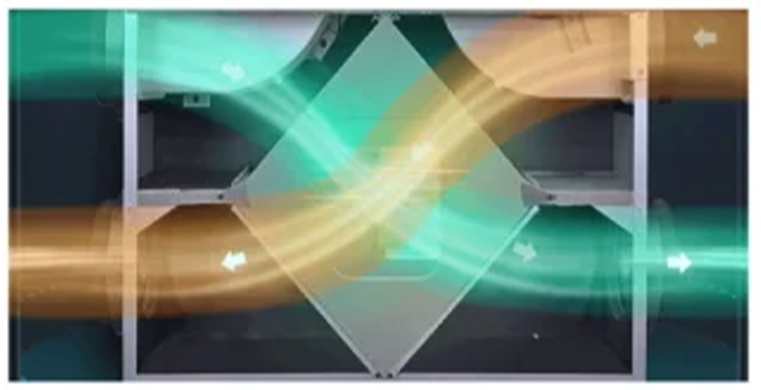

Different from ERV, this energy recovery ventilation solution for hot coastal cities can effectively reduce the humidity of incoming fresh air. When the fresh air passes through the aluminum foil heat exchange core, moisture condenses into water and is discharged outdoors, helping to maintain a more comfortable indoor environment.

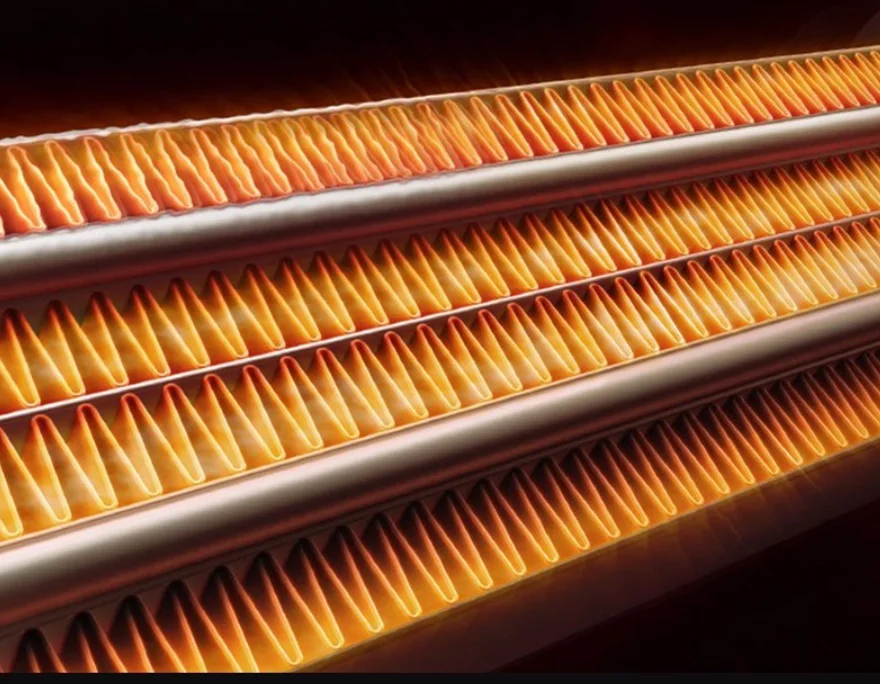

Electric auxiliary heat
Preheat outdoor air: For regions with cool summers and severe winters, the energy recovery ventilation system uses PTC electric auxiliary heating to preheat incoming air during winter. Combined with full heat exchange technology, it improves indoor fresh air comfort and overall system efficiency.
The energy recovery ventilation unit also helps prevent the heat exchange core from freezing, making it suitable for operation in lower ambient temperatures. (This feature is optional.)
Bidirectional flow circulation
Bidirectional flow circulation
Air supply and exhaust ensure orderly air circulation throughout the indoor environment. The energy recovery ventilation system effectively removes indoor CO₂ and other pollutants, providing users with a fresh, clean, and healthy indoor air climate around the clock.
Double muffling and heat preservation measures
Application Scenarios
Private Residence
Residential
Hotel
Commercial Building
Why Choose Us

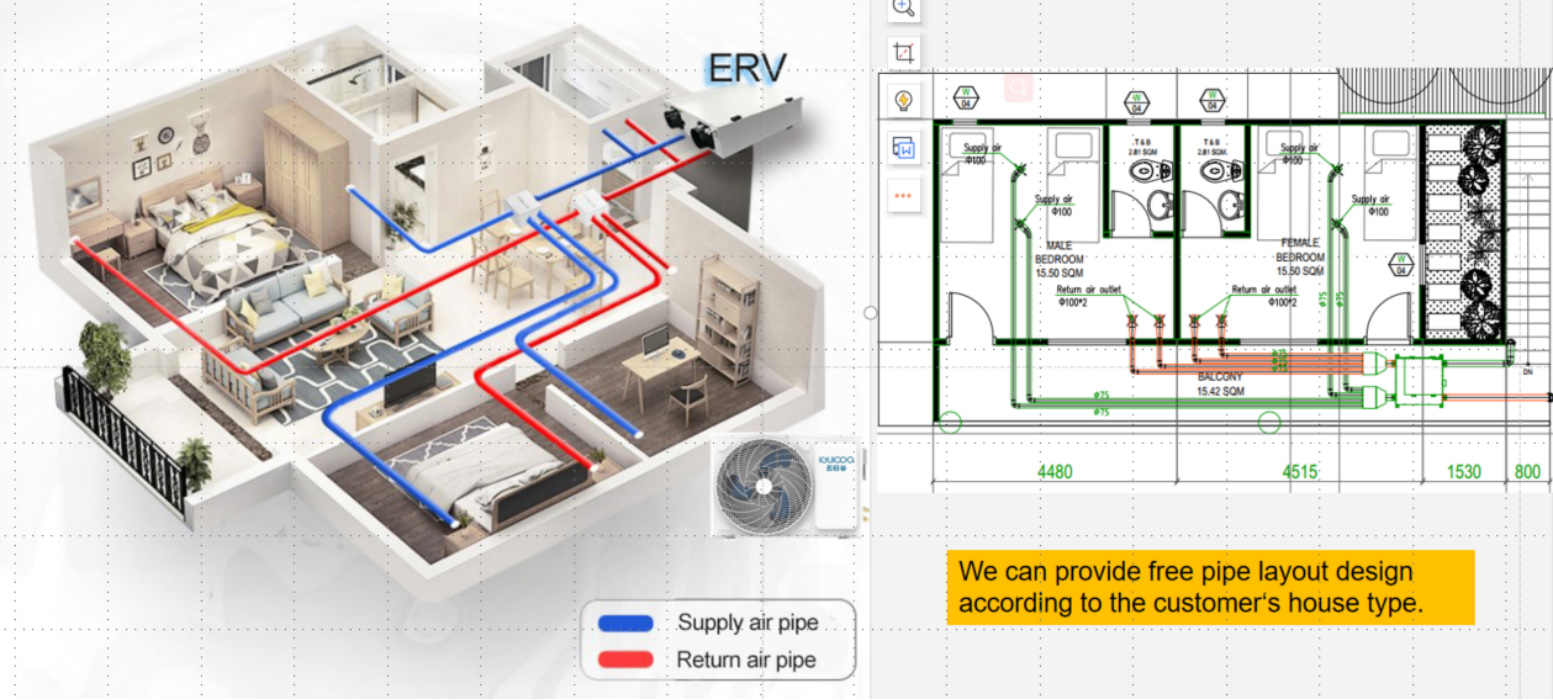

Installation and pipe layout diagram ：
We can provide pipe layout design according to your client's house design draft.
