Wall-Mounted Energy Recover Ventilation (ERV) System MVHR Vertical Heat Recovery Ventilation Complete System
Product Features
Airflow: 250~500m³ airflow
Model: TEWPW C1 series
Characteristics:
• Double energy recovery,heat recovery efficiency is up to 93%
• It can be connected to air to water heat pump pre-cooling preheating input fresh air, improve comfort
• Outdoor fresh air passes through the primary filter and H12 filter at OA side, to arrest the dust/ PM2.5/ other pollutants.
• High-precision infrared CO2 sensor automatically identifies indoor CO2 concentration and intelligently adjusts wind speed
• In winter, the outdoor fresh air temperature is automatically identified, and the electric heating module is intelligently started
• Remote monitoring of indoor air quality such as carbon dioxide, humidity, temperature and PM2.5.
• The RS485 port is reserved for centralized control or connecting to other smart homes
• Low noise level of 29 dB(A) (Sleep mode)

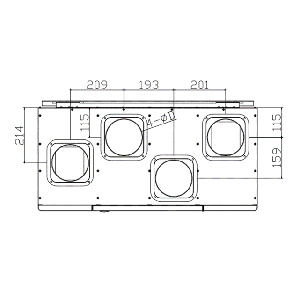

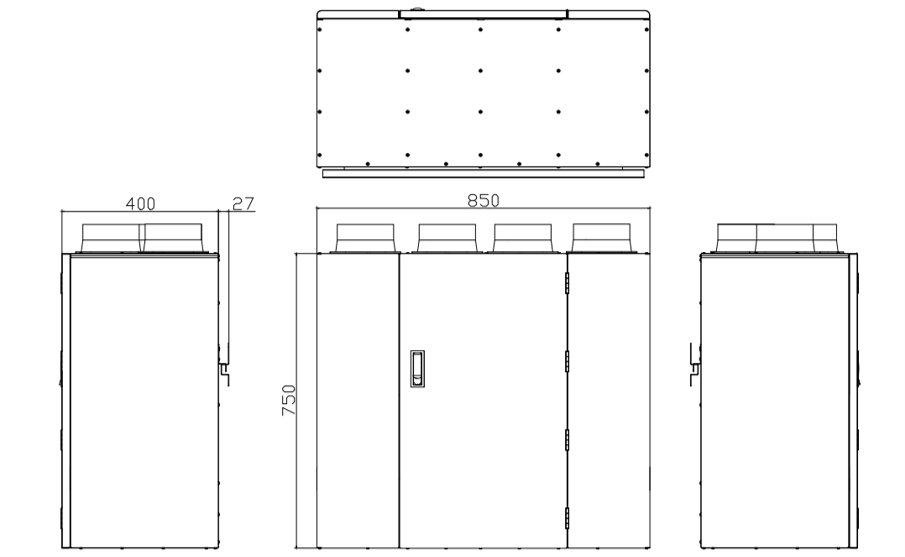

Structures And Size
| Model | Φ D |
| TEWPW-025(C1-1D2) | 150 |
| TEWPW-035(C1-1D2) | 150 |
| TEWPW-050(C1-1D2) | 200 |
Product Description
Product Details

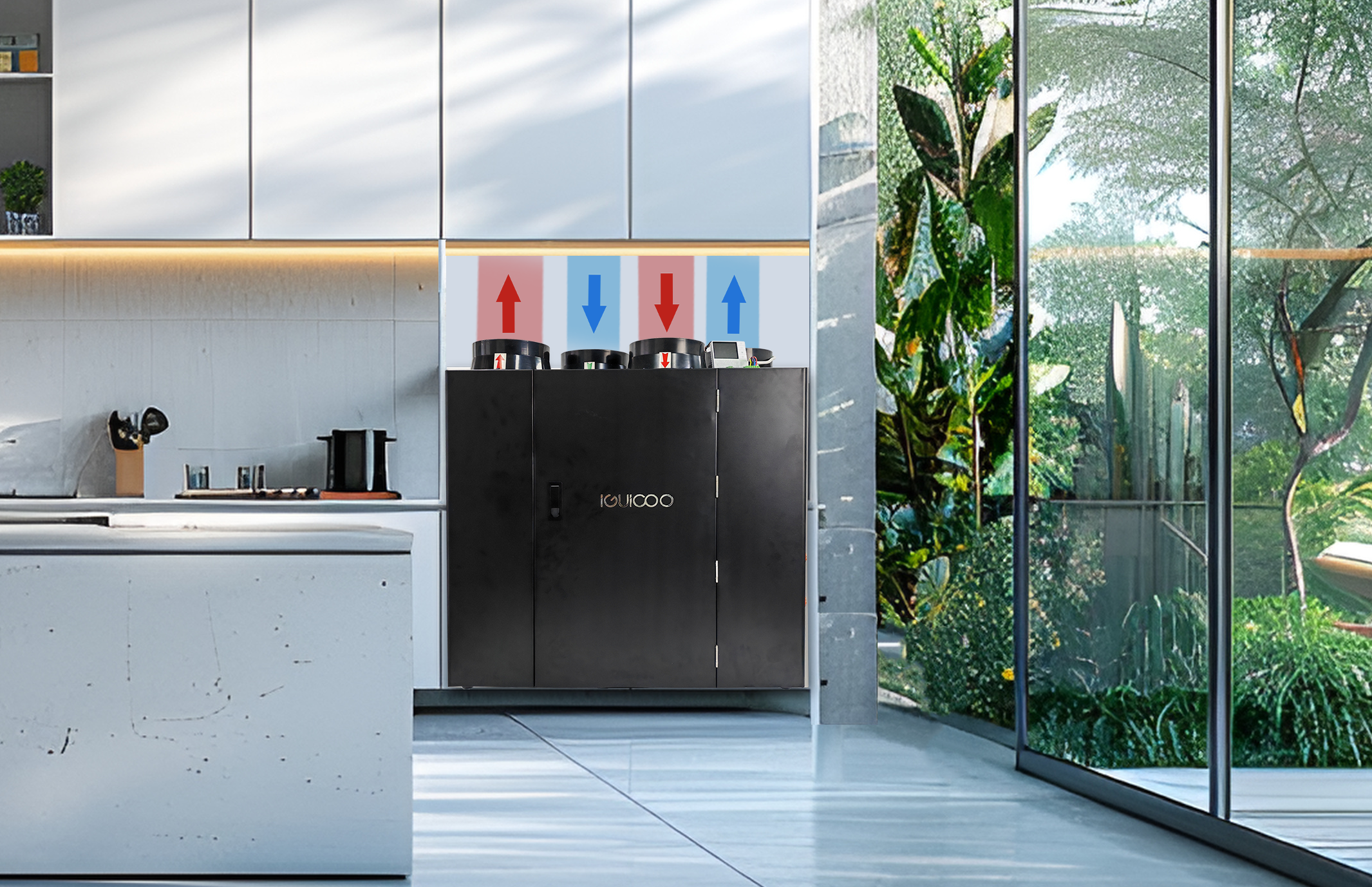

This Vertical ERV is suitable for house units with insufficient headspace.
• The system uses energy recovery ventilation and air energy recovery technology.
• It integrates balanced ventilation, pre-heating of fresh air in winter.
• It provides healthy and comfortable fresh air through energy recovery ventilation while achieving maximum energy savings; heat recovery efficiency is up to 90%.
• Reserve positions for custom function modules.
• Bypass function is standard.
• PTC heating ensures operation in low-temperature environments in winter.

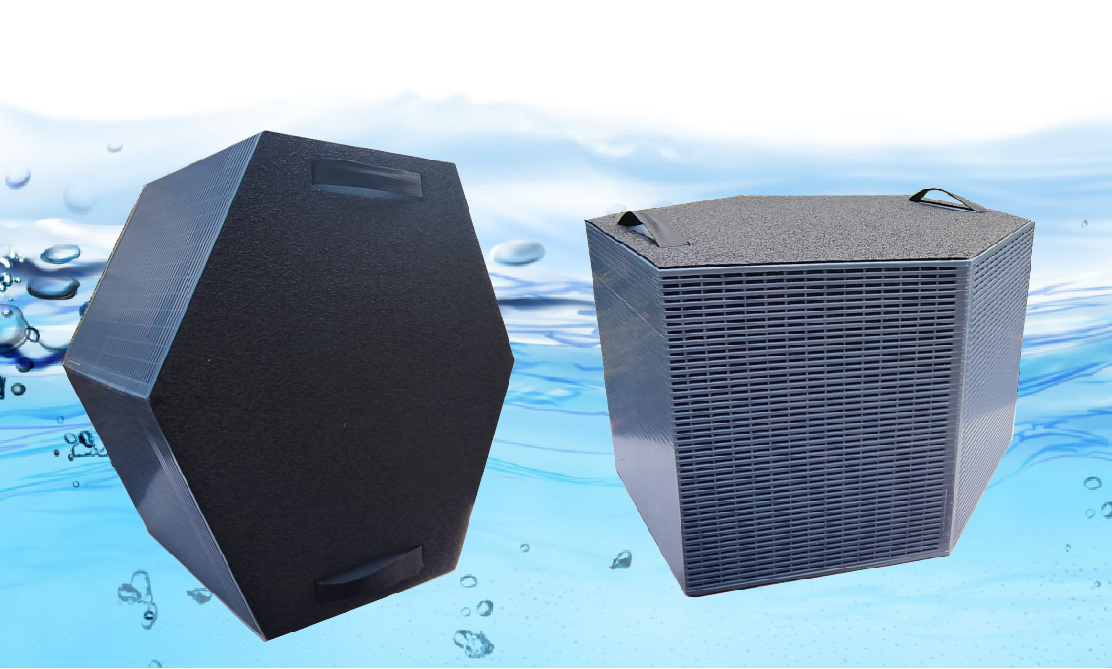

Washable cross-counterflow enthalpy heat exchanger
1.High efficiency cross-counterflow enthalpy heat exchanger
2.Easy to maintain
3.5~10 years life
4.Up to 93% heat exchange efficiency
Main Feature:
• The heat recovery efficiency of the energy recovery ventilation core is up to 85%.
• Enthalpy efficiency is up to 76%.
• Effective air exchange rate above 98%.
• Selective molecular osmosis.
• Flame retardant, antibacterial and mildew resistance.

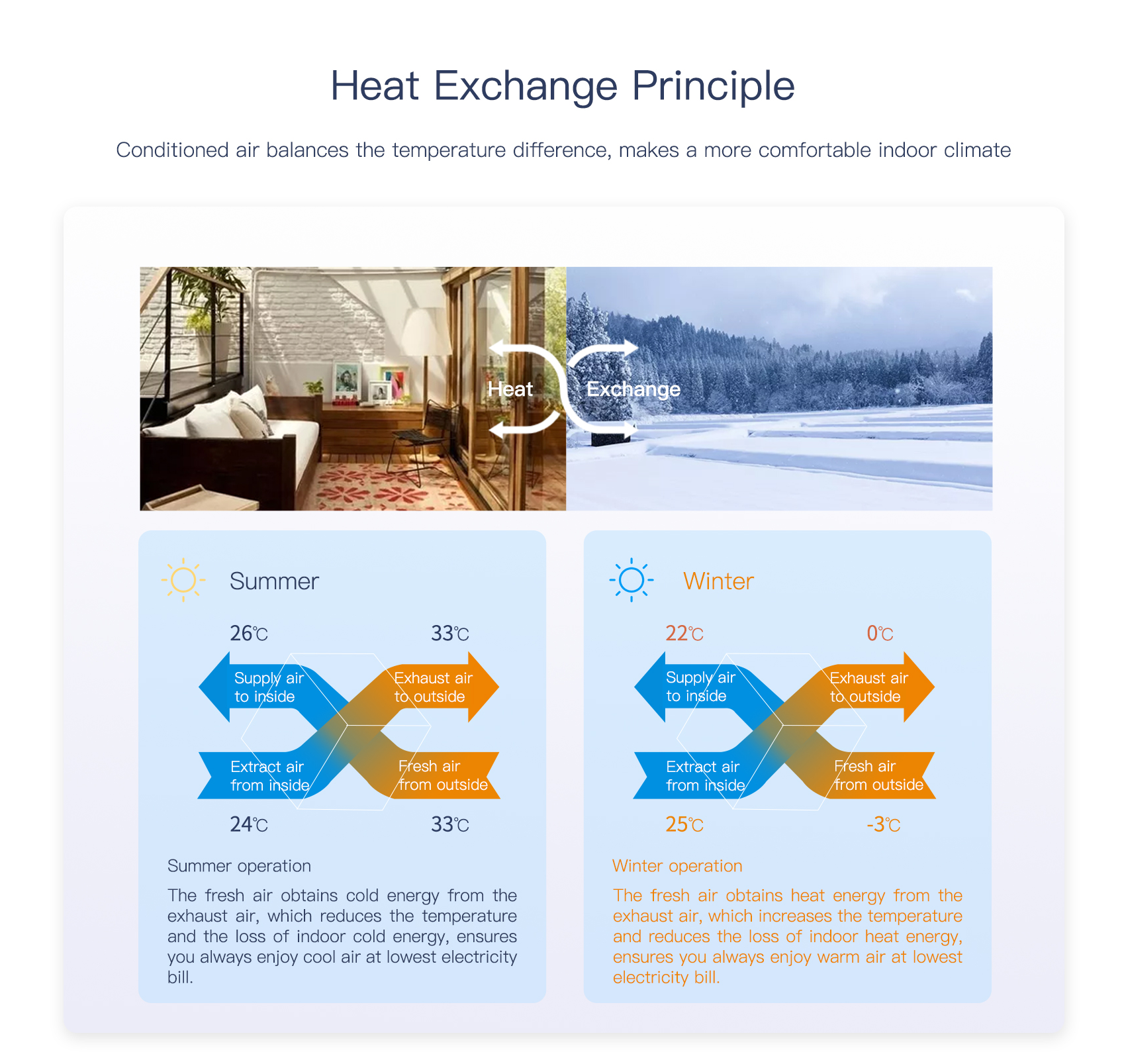

Working Principle:
• The flat plates and the corrugated plates form channels for suction or exhaust air streams.
• In the energy recovery ventilation process, energy is recovered when the two air streams pass through the exchanger crosswise with a temperature difference.
Application Scenarios
Villa
Residential building
Hotel/Apartment
Commercial Building
Product Parameter
| Model | TEWPW-025(C1-1D2) | TEWPW-035(C1-1D2) | TEWPW-050(C1-1D2) |
| Airflow（m³/h） | 250 | 350 | 500 |
| Rated E.S.P（Pa） | 100 | 100 | 100 |
| Temp.Eff. (%) | 80-93 | 75-90 | 73-88 |
| Noise dB（A） | 34 | 36 | 42 |
| Power input (W)（Fresh air only） | 115 | 155 | 225 |
| Pre-cooling capacity（W） | 1200* | 1500* | 1800* |
| Pre--heating capacity（W） | 2000* | 2500* | 3000* |
| Water supply (kg/h) | 210 | 270 | 320 |
| PTC preheating （W）（Anti-freezing） | 300（600） | ||
| Rated voltage/frequency | AC 210-240V / 50（60）Hz | ||
| Energy recovery | Enthalpy exchange core，heat recovery efficiency is up to 93% | ||
| Purification efficiency | 99% | ||
| Controller | TFT Liquid crystal display / Tuya APP | ||
| Motor | DC motor（Double intake direct current centrifugal fan） | ||
| Purification | Primary filter + IFD module(optional)+H12 Hepa filter | ||
| Operation mode | Fresh air purification + By-pass function | ||
| Operating ambient temperature（℃） | -25～40 | ||
| Product size（L*W*H）mm | 850x400x750 | ||
| IFD sterilization filter | Optional | ||
| Fixation | Wall-mounted or standing-mounted | ||
| Connect size（mm） | φ150 | φ150 | φ200 |

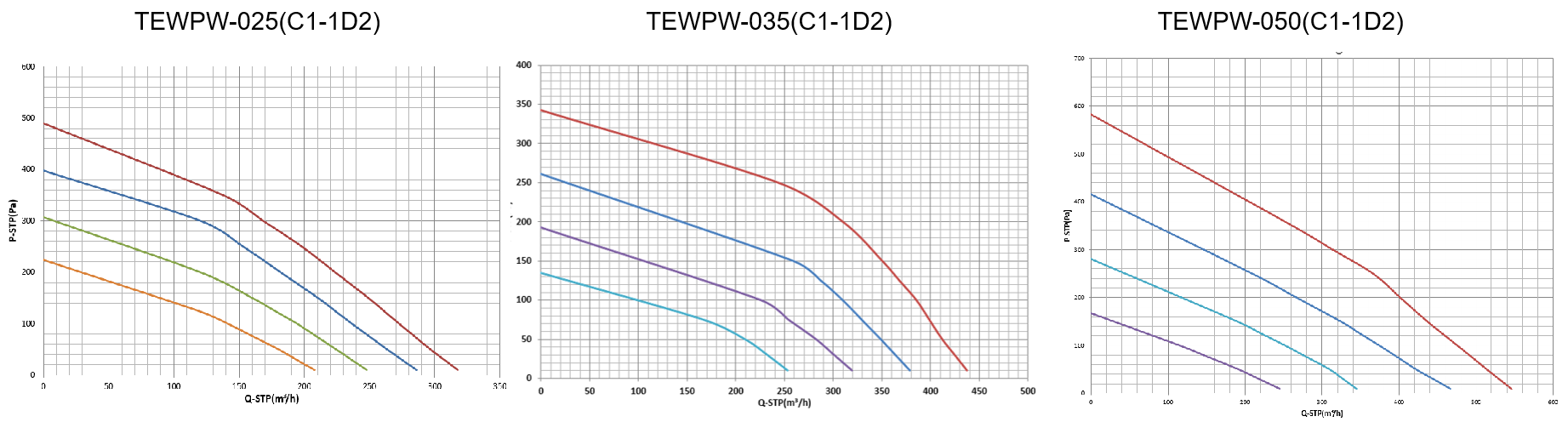

Static Pressure Curve
Why Choose Us
Intelligent Control: The Tuya APP, in conjunction with the intelligent controller, offers a range of functions tailored to diverse project requirements for the energy recovery ventilation system.
A temperature display allows for constant monitoring of indoor and outdoor temperatures.
The power auto-restart feature ensures the ERV system recovers automatically from power outages.
CO₂ concentration control maintains optimal air quality. The humidity sensor manages indoor humidity levels.

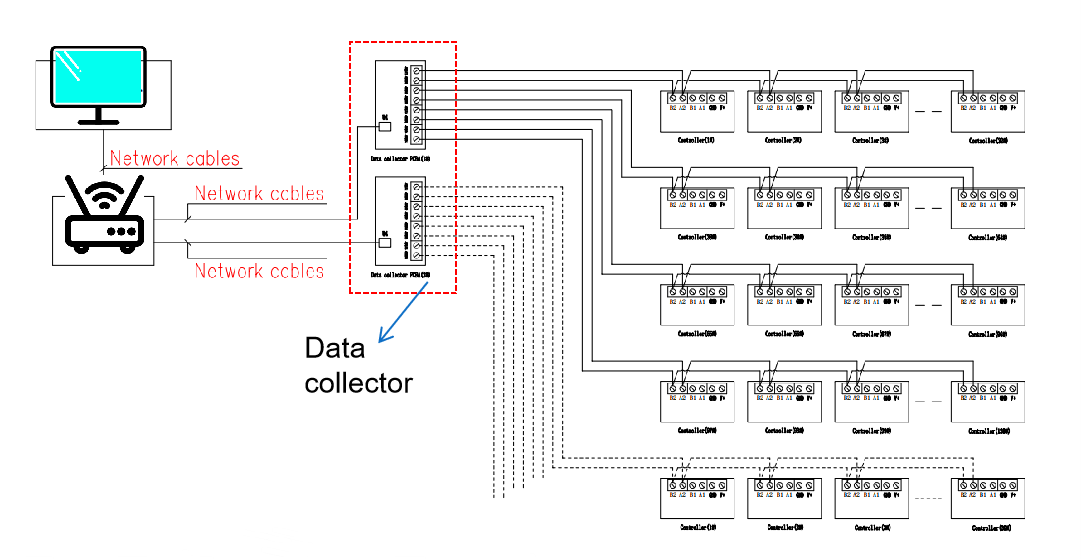

The RS485 connectors facilitate centralized control via BMS. External control and on/error signal output enable administrators to oversee and regulate the energy recovery ventilation unit effortlessly.
A filter alarm system alerts users to clean the filter in due time.
