Micro Positive Ceiling Mounted One-way Flow Fresh Air Ventilation System with Heat Recovery for House Tuya Control

Short Description:

The VFHC series fresh air system delivers up to 300m³/h airflow at 100Pa static pressure, creating positive pressure that keeps dust and pollutants out while continuously supplying fresh, oxygen-rich air — no need to open windows.

A 1500W ceramic PTC heater with intelligent temperature-based control pre-warms incoming air, eliminating cold drafts in winter. Dual purification — a washable primary filter + H12 HEPA — removes 99.9% of particles down to 0.3μm, including PM2.5, allergens and bacteria, while cutting maintenance costs.

Optimized AC motor and sound-dampening design keep operation at just 27dB(A) — library-quiet, ideal for bedrooms, nurseries and offices.


Product Detail

Product Tags

Product Features

Airflow: 200~300 m³/h
Model: VFHC Series

• The VFHC series delivers a high airflow rate of up to 300m³/h, creating a robust positive pressure environment that continuously replaces stale indoor air with fresh, oxygenated outdoor air. By maintaining 100Pa static pressure, it keeps dust and pollutants out without needing to open windows, ensuring a healthy and oxygen-rich atmosphere for large residential or commercial spaces.

• Featuring a high-capacity 1500W ceramic PTC electric heating module, this system effectively solves the problem of cold drafts during winter. The intelligent heating function automatically adjusts based on outdoor temperatures, pre-warming incoming fresh air to maintain a stable and cozy indoor climate. It is the perfect solution for users in cold regions who prioritize thermal comfort alongside fresh air.
• Our advanced dual-purification system combines a washable primary filter with a high-precision H12 HEPA filter. This setup provides a 99.9% filtration rate for microscopic particles as small as 0.3μm, including PM2.5, allergens, and bacteria. The primary filter is easily washable, significantly reducing maintenance costs while the H12 HEPA ensures a pure and safe breathing environment for sensitive individuals.
• Engineered with optimized AC motor technology and sound-dampening materials, the VFHC series operates at a whisper-quiet level of 27dB(A). This library-grade silence makes it ideal for bedrooms, nurseries, and quiet office environments. Users can enjoy a continuous supply of purified fresh air throughout the night without any mechanical noise interference, promoting a deeper and more restful sleep.

VFHC01

Product Advantages

VFHC02

Dark Gray:Default model:300m³/h                                                                                                                     White Default model:200/250m³/h

Bulk orders have special needs, can be additional communication.
VFHC03
DC Brushless motor

DC motor:Higher Energy Efficiency and Ecology by Powerful Motors

product_shows

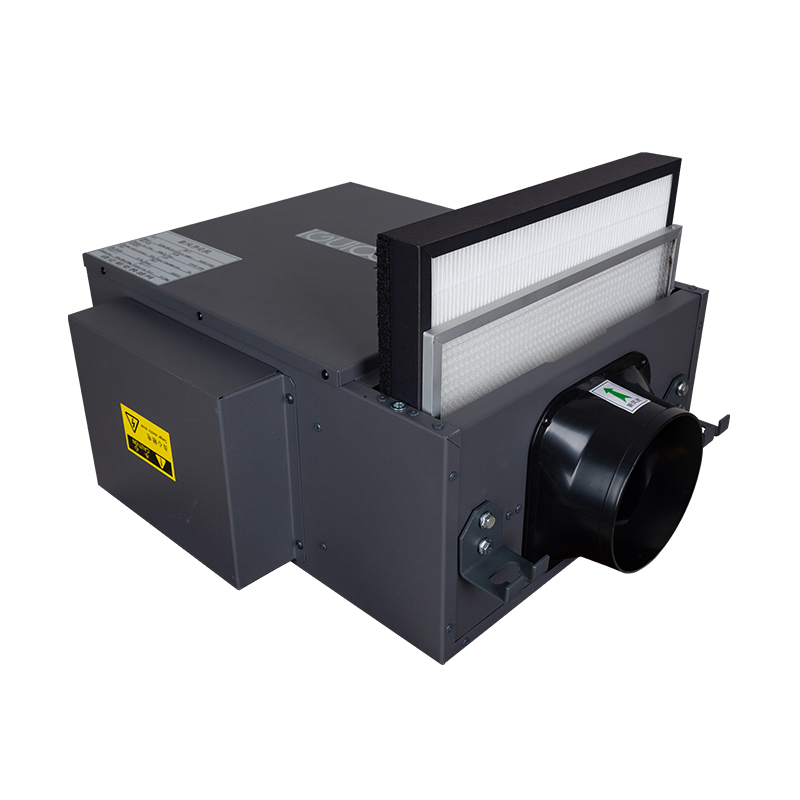

Washable exchange core: The modified membrane which can wash the enthalpy exchange core and has a long life of 3-10 years

200-250-300-新风+净化+电辅热-4

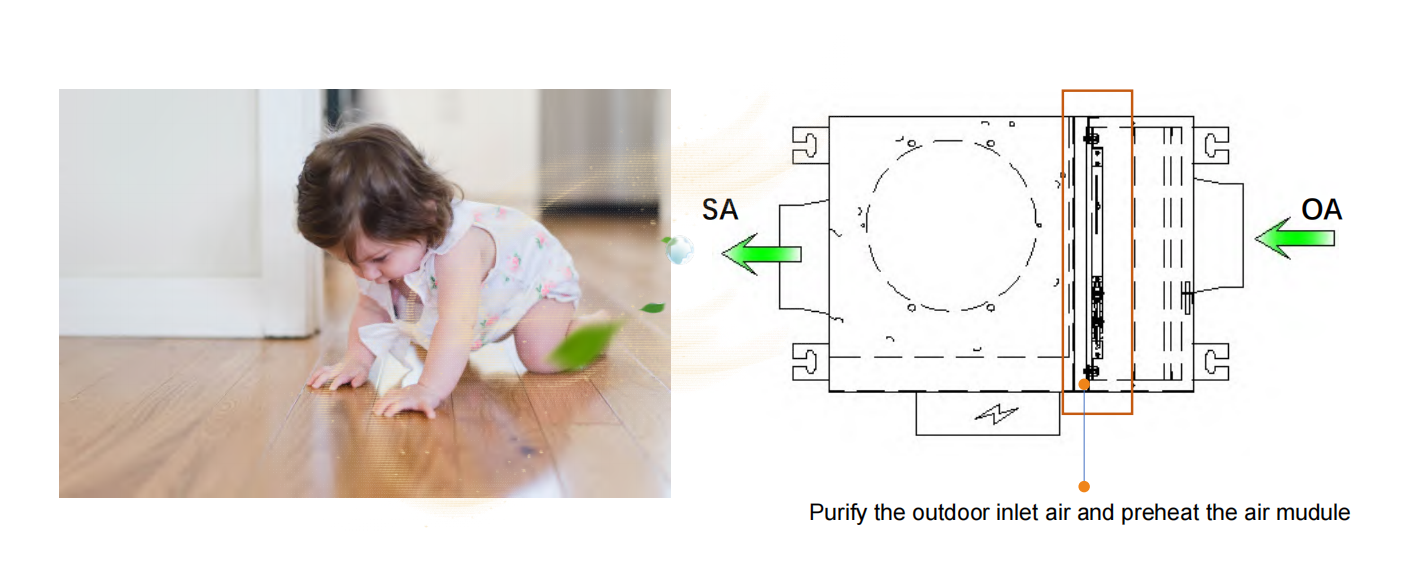

·Positive Pressure Ventilation

• Introduce fresh air to generate positive pressure, continuously provide fresh air to the room. Users can enjoy the fresh air without opening the window, and ensure the oxygen content and freshness of the indoor air.

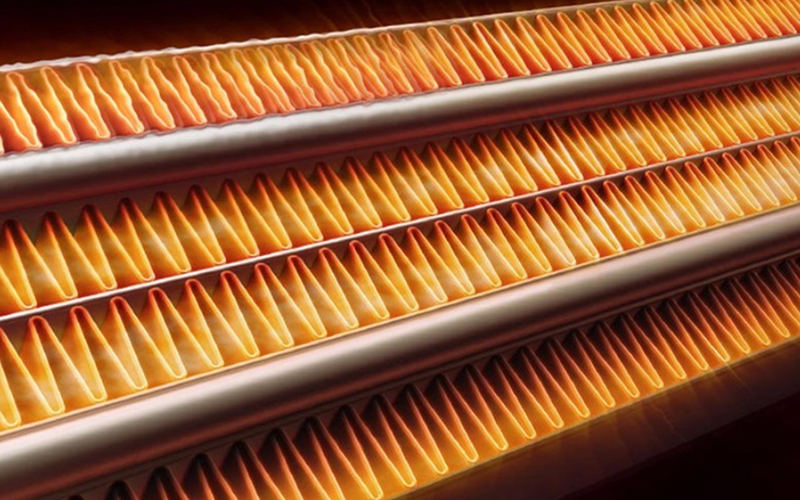

· Smart Electric pre-heating:

• Built-in ceramic electric heating module(PTC), safe and reliable, intelligent start according to outdoor temperature, make indoor climate more comfortable;
PTC-heating
微信图片_20240129095848

· Double purification protection

Primary filter+ Hepa filter can filter 0.3um particles, and the filtration efficiency is as high as 99.9%.

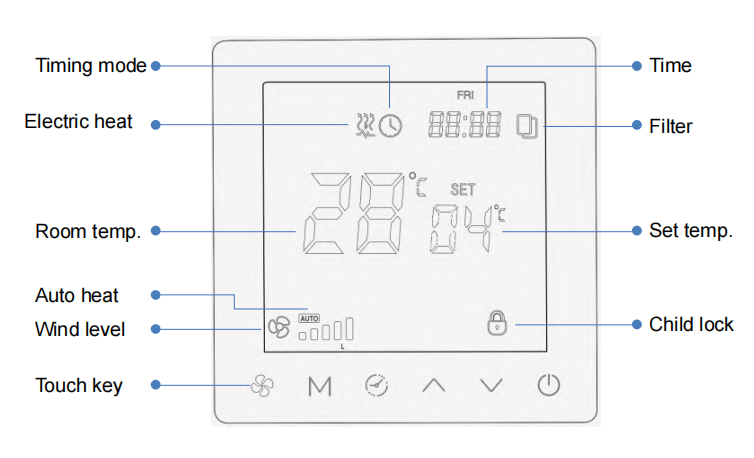

Through high-precision sensors, real-time display of indoor airtemperature, wind speed, time and other indicators. According to the outdoorinlet airtemperature, the electric auxtliary heating is intelligenty activated to preheat the outdoor inter air temperature and improve the comfort of the fresh air.

VFHC05
Technical Parameter
Model VFHC-020(A1-1A2) VFHC-025(A1-1A2) VFHC-030(A1-1A2)
Airflow (m³/h) 200 250 300
E.S.P (Pa) 100 100 100
Noise dB(A) 27 28 32
Voltage (V/HZ) 210-240/50 210-240/50 210-240/50
Power input (W) 52+(750*2) 75+(750*2) 95+(750*2)
N.W. (kg) 12 13 13
Size (mm) 455*380*200 505*380*230 505*380*230
Connection diameter (mm) 110 150 150

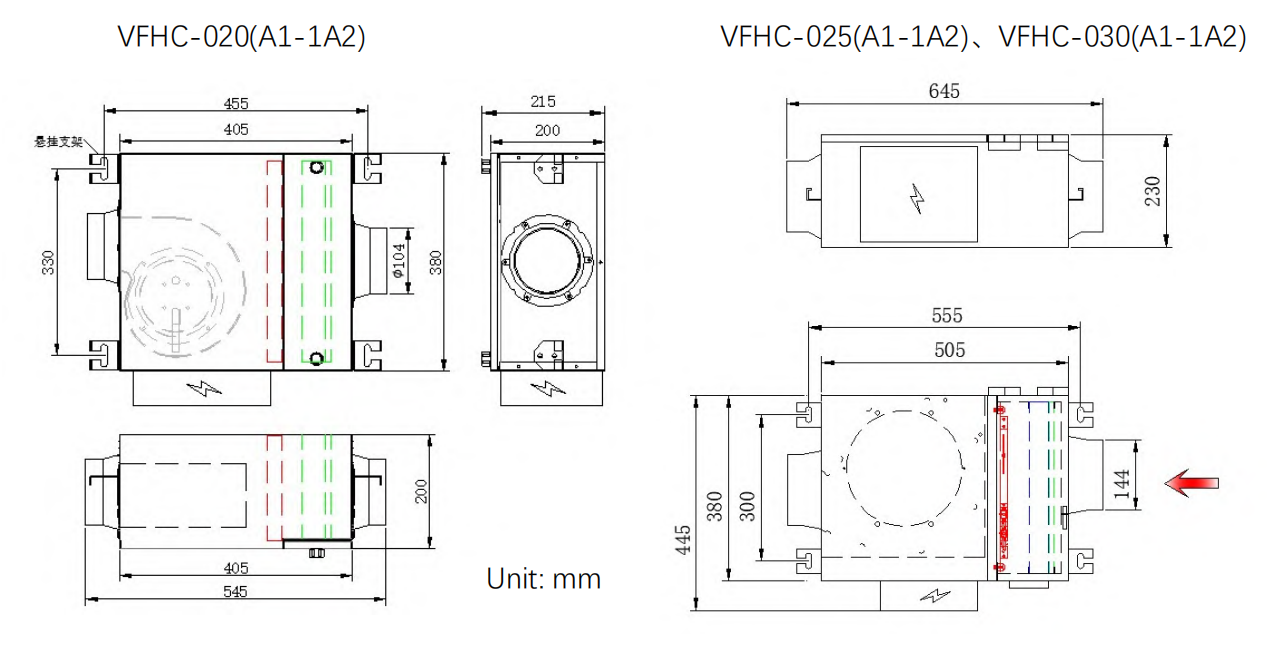

Product Parameter

VFHC06

Company Profile

Let People Enjoy Pure And Natural Breathing !

IGUICOO, established in 2013, is a professional company focus on the research development, sale and service of ventilation system. We are committed to improving air cleanliness, oxygen content, temperature, and humidity. In order to better ensure product quality, we have obtained I S O 9 0 0 1, I S O 4 0 0 1, I S O 4 5 0 0 1 and over 80 patent certificates.

Our Team

IGUICOO has always taken technological innovation as the driving force of enterprise growth and opening-up cooperation. At present, we have a senior research and development team with more than 20 high-educated people. We always insist on providing customers with innovative technical solutions, and win the trust of customers with professional services, high-quality products, and competitive prices.
